Arduino IoT Cloud Problem of Upload Code On Esp8266 || Error : Uploading

 Arduino IoT Cloud Problem of Upload  Code On Esp8266 ||  Error: Uploading

Using the Arduino IoT cloud On ESP8266 has a few common issues, especially when trying to flash new firmware or upload a sketch.

#IoT cloud  #Arduino IoT Cloud #esp8266 #Error of uploading

This Error is Common on Generic Esp8266 Board

"Error"
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Upload started
Programming with: Serial
Flashing with command:C:/Users/JD/.arduino-create/esp8266/esptool/2.5.0-3-20ed2b9/esptool.exe -vv -cd ck -cb 115200 -cp COM4 -ca 0x00000 -cf C:/Users/JD/AppData/Local/Temp/arduino-create-agent907029987/WATPUMP_dec17a.bin
esptool v0.4.13-1-gf80ae31 - (c) 2014 Ch. Klippel <ck@atelier-klippel.de>
setting board to ck
setting baud rate from 115200 to 115200
setting port from COM1 to COM4
setting address from 0x00000000 to 0x00000000
espcomm_upload_file
espcomm_upload_mem
setting serial port timeouts to 1000 ms
opening bootloader
resetting board
trying to connect
flush start
setting serial port timeouts to 1 ms
setting serial port timeouts to 1000 ms
flush complete
espcomm_send_command: sending command header
espcomm_send_command: sending command payload
read 0, requested 1
trying to connect
flush start
setting serial port timeouts to 1 ms
setting serial port timeouts to 1000 ms
flush complete
espcomm_send_command: sending command header
espcomm_send_command: sending command payload
read 0, requested 1
trying to connect
flush start
setting serial port timeouts to 1 ms
setting serial port timeouts to 1000 ms
flush complete
espcomm_send_command: sending command header
espcomm_send_command: sending command payload
read 0, requested 1
resetting board
trying to connect
flush start
setting serial port timeouts to 1 ms
setting serial port timeouts to 1000 ms
flush complete
espcomm_send_command: sending command header
espcomm_send_command: sending command payload
serialport_receive_C0: 00 instead of C0
trying to connect
flush start
setting serial port timeouts to 1 ms
setting serial port timeouts to 1000 ms
flush complete
espcomm_send_command: sending command header
espcomm_send_command: sending command payload
serialport_receive_C0: 00 instead of C0
trying to connect
flush start
setting serial port timeouts to 1 ms
setting serial port timeouts to 1000 ms
flush complete
espcomm_send_command: sending command header
espcomm_send_command: sending command payload
read 0, requested 1
resetting board
trying to connect
flush start
setting serial port timeouts to 1 ms
setting serial port timeouts to 1000 ms
flush complete
espcomm_send_command: sending command header
espcomm_send_command: sending command payload
serialport_receive_C0: 00 instead of C0
trying to connect
flush start
setting serial port timeouts to 1 ms
setting serial port timeouts to 1000 ms
flush complete
espcomm_send_command: sending command header
espcomm_send_command: sending command payload
read 0, requested 1
trying to connect
flush start
setting serial port timeouts to 1 ms
setting serial port timeouts to 1000 ms
flush complete
espcomm_send_command: sending command header
espcomm_send_command: sending command payload
read 0, requested 1
warning: espcomm_sync failed
error: espcomm_open failed
error: espcomm_upload_mem failed
Executing command: exit status 2

||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||



ESP8266 Troubleshooting – NodeMCU

Solve this Error Follow this Step

Step:1

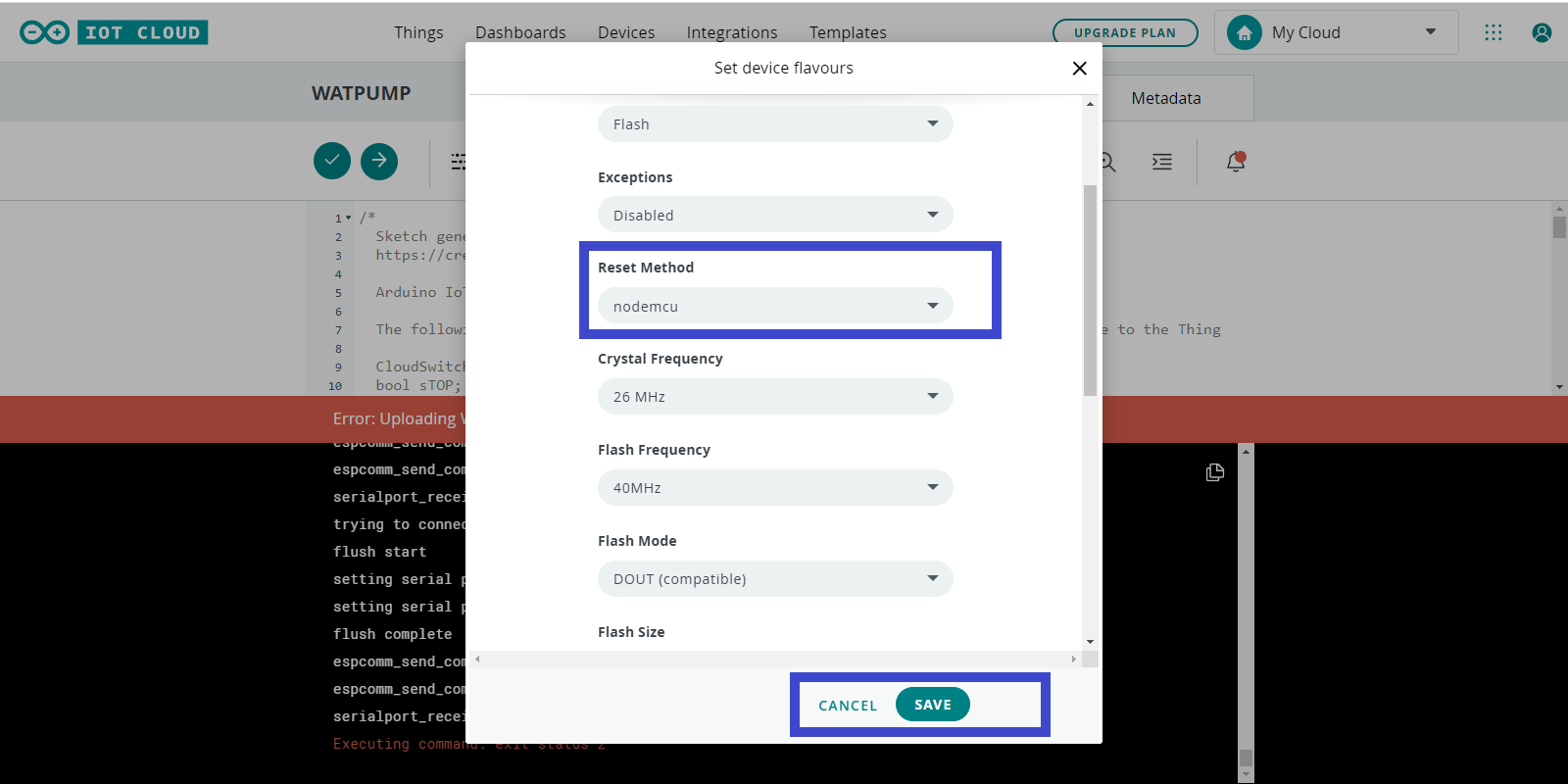

The first step is the "Click On" the Selected Box shown on the image in your cloud.

Step:2
The Second step is the "Click On" the Selected Box shown on the image in your cloud. that is the Reset of the esp8266 board.

Step :3
The next step is the change "CK" To "noadmcu".that is shown in the image.



Step:4
Now Try To Uploading The Sketch, then the Problem is solved.
Upload Successfully.


To Support Subscribe to Our Youtube Channel: "Click Here"
