7 Segment Digital Clock With RTC DS1307 Module Arduino

7 Segment Digital Clock With RTC DS1307 Module | Arduino Project

Welcome To My Channel "Electrify Circuit".

In the 21st (twenty-first) century Time is Very Importance and manage our time. So We Make a Portable Rechargeable Digital Clock Using 7 Segment Display, Arduino, And RTC DS1307 Module. | View Full Video and Enjoy | It is Very Easy. All Details are Here You can Make At Home.

To Make Digital Clock follow a Few steps and You make a Beautiful Portale Rechargebal Clock At Home.



Seven Segment Display Pin Diagram




the first step To making a Clock is to Make Four Digit circuits Two-Digit For Hours and Two-Digit For Minutes and Two-LED For blinking. This Circuit Show Below Please Check.


the Second step is to Make Arduino and RTC Ds1307 Module Circuit.
Why I am using RTC Ds1307 Module?
RTC Module is Electronics Device in Form IC. RTC is Various types are Available I am using DS1307.

The purpose of the RTC Module is Real-Time Clock this Module Provide Precise Time for many applications Use this Module

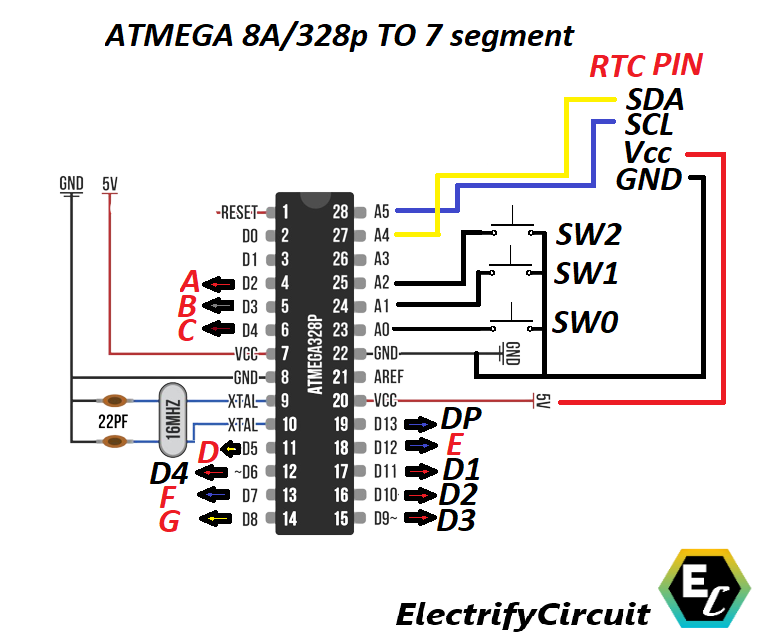

Circuit Diagram Arduino and RTC Ds1307 Module Circuit.

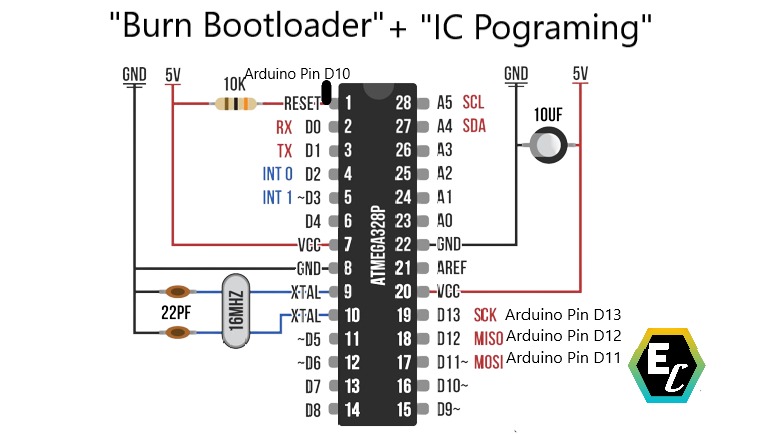

How to "Burn Bootloader" and ATmega 328p/8A IC Programming?
Using This Step You Can Do it.
Follow Circuit Diagram
Burn Bootloader

Pinout For IC Programming:- IC Pin 1(Reset) 👉 Arduino Pin D10
IC Pin D11(SCK) 👉 Arduino Pin D11 IC Pin D12 (MISQ) 👉 Arduino Pin D12
IC Pin D13 (MOSI) 👉 Arduino Pin D13

For Making This Clock All Required Components show Below
Required Components:- 4 x 7 Segment Display | 1 x DS1307 RTC Module with cell | 1 x ATmega 8A IC With IC Base | 1 x 16 MHz Crystal | 2 x 22pf Capacitor | 2 x Red LED | 8 x 220-ohm Resistor | 2 x Zero PCB | 2 x Push-button | 2 x Self Locking Switch | 1 x TP4056 Li-ion Battery charging Module | 1 x 18650 Li-ion Battery | 1 x 18650 Li-ion Battery Case | Some Jumper Wire | Seven Segment Library:-Click Here Circuit Diagram and Code Link:-https://drive.google.com/drive/folders/1yR02AzUoWwepECK2G7c5DC-da-09hQQA?usp=sharing
